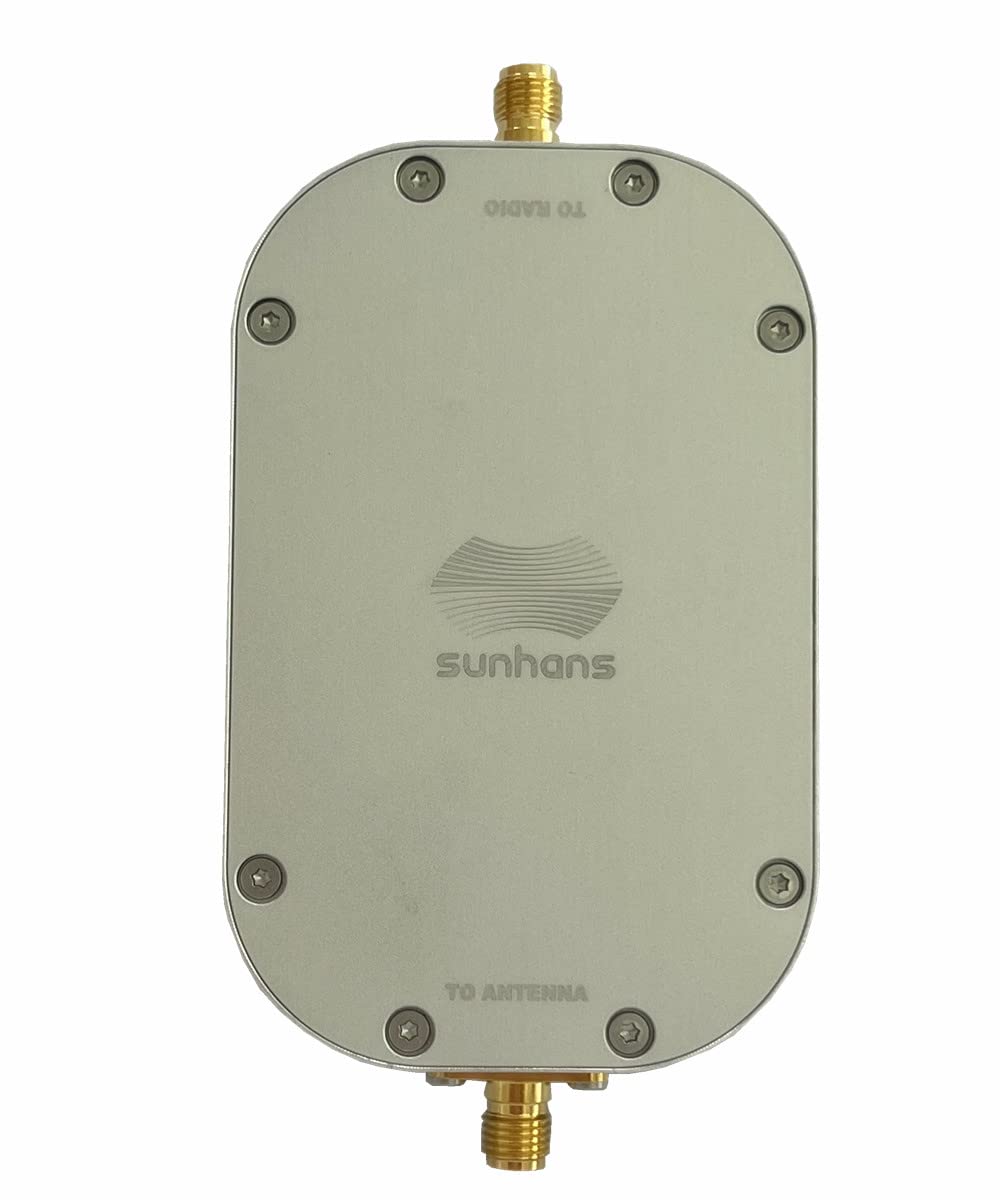

eSunRC Dual Band 2.4GHz & 5.8GHz 2000mW 33dBm Wireless Signal Booster Amplifier - Lightweight 2.7oz Drone WiFi Extender for FPV, UAV, RC Models - Perfect for Long-Range Flying and Stable Video Transmission

Technical Specifications: Booster Model: SH-RC5824G2W Operating Range:2.4~2.5 GHz, 5.0~5.875 GHz Operating Mode:Bi-directional, half-duplex, time division duplex senses RF, carrier from transmitter and automatically switch receiving to transmitting mode. Connector Type:SMA Receptacle 50ohm,To radio SMA female(hole inside),To antenna RP-SMA female(pin inside) Input Power:0~20 dBm Transmit Gain:15-18dB Output Power: 2000mW (33dBm) Receiver Gain:12 dB Noise Figure: 3.5 dB typical Frequency Response:±1dB over operating range Supported voltages: 5V~16V/2A DC Operating Temperature:-20°C to + 70°C Operating Humidity:Up to 75% relative humidity Material:Cast Aluminum Booster Weight: 77g (2.72 oz) Size:9.7 x 5.2 x x1.1cm (3.81x2.04x0.39 Inches) Features: New design for simple,simple,simple; 2.4G &5.8G dual band, Auto switch frequency; Max. 2000mW real output power; 5-16V wide voltage range,support different power supply; Aluminum-alloy case by CNC, anti-interference; Designed for Drones, UAV, RC equipment. Package includes: 1 x SH-RC5824G2W WiFi booster 1 x DC 2.5” to USB adapter 1 x Mounting Velcro 1 x English User Manual (No Power Supply is Included) [Compatible with any 2.4GHz &5.8GHz wireless device] Our product can support 2.4GHz &5.8GHz wireless Router/AP/ wireless bridge/wireless network card; 2.4GHz &5.8GHz wireless monitoring (NVR,DVR);2.4GHz &5.8GHz wireless microphone,RC drones,FPV device etc. Application Scene: For UAV,Routers,IP cameras, R/C helicopters, planes and cars,Walkie talkies,ZigBee, Robot... For House, Office,Hotels,Supermarkets, Hospitals,Parking Spaces... For WiFi Solution & Project : WiFi Hotspot Solutions,Access points,Smart home systems, Smart city IOT, RC Drones Platform,security camera system ... Notes about use 1. [Simply plug and play] Extend the range of your wireless network with the Wifi Booster Amplifier. Plug and play connections,no software, no configuration and virtually no setup of software. 2. About the input power: (output power of the device = input power of the amplifier), Make sure that input power of the amplifier be within the acceptable range that wifi booster device supports (for example, typically suggested to be about 15 dB.). Regarding use of wifi booster device, some notes are shared in advance. 1) IMPORTANT: Make sure that the input power level is within the acceptable signal power range that the Wi-Fi booster device supports. When users decide to use wifi boosters on respective applications, pay attention to power of input signal of booster: If too weak, then booster is not triggered and no boosting performance exists (even weaker); instead, if over high, output will be over-high and saturated and boosting performance will also naturally be negatively impacted. 2) Make sure that power supply to booster device is matching. 3) Cable connection is smooth (avoid connection of FEMALE port to another FEMALE port at port connection). 4) Also, indicator light will be useful to make some simple judge at installation. 5) If devices are installed outdoors, it will also be important to protect the installation from rain/water and lightning strike, and other bad weather impacts. Notes about use 1. [Simply plug and play] Extend the range of your wireless network with the Wifi Booster Amplifier. Plug and play connections,no software, no configuration and virtually no setup of software. 2. About the input power: (output power of the device = input power of the amplifier), Make sure that input power of the amplifier be within the acceptable range that wifi booster device supports (for example, typically suggested to be about 15 dB.). Regarding use of wifi booster device, some notes are shared in advance. 1) IMPORTANT: Make sure that the input power level is within the acceptable signal power range that the Wi-Fi booster device supports. When users decide to use wifi boosters on respective applications, pay attention to power of input signal of booster: If too weak, then booster is not triggered and no boosting performance exists (even weaker); instead, if over high, output will be over-high and saturated and boosting performance will also naturally be negatively impacted. 2) Make sure that power supply to booster device is matching. 3) Cable connection is smooth (avoid connection of FEMALE port to another FEMALE port at port connection). 4) Also, indicator light will be useful to make some simple judge at installation. 5) If devices are installed outdoors, it will also be important to protect the installation from rain/water and lightning strike, and other bad weather impacts.
